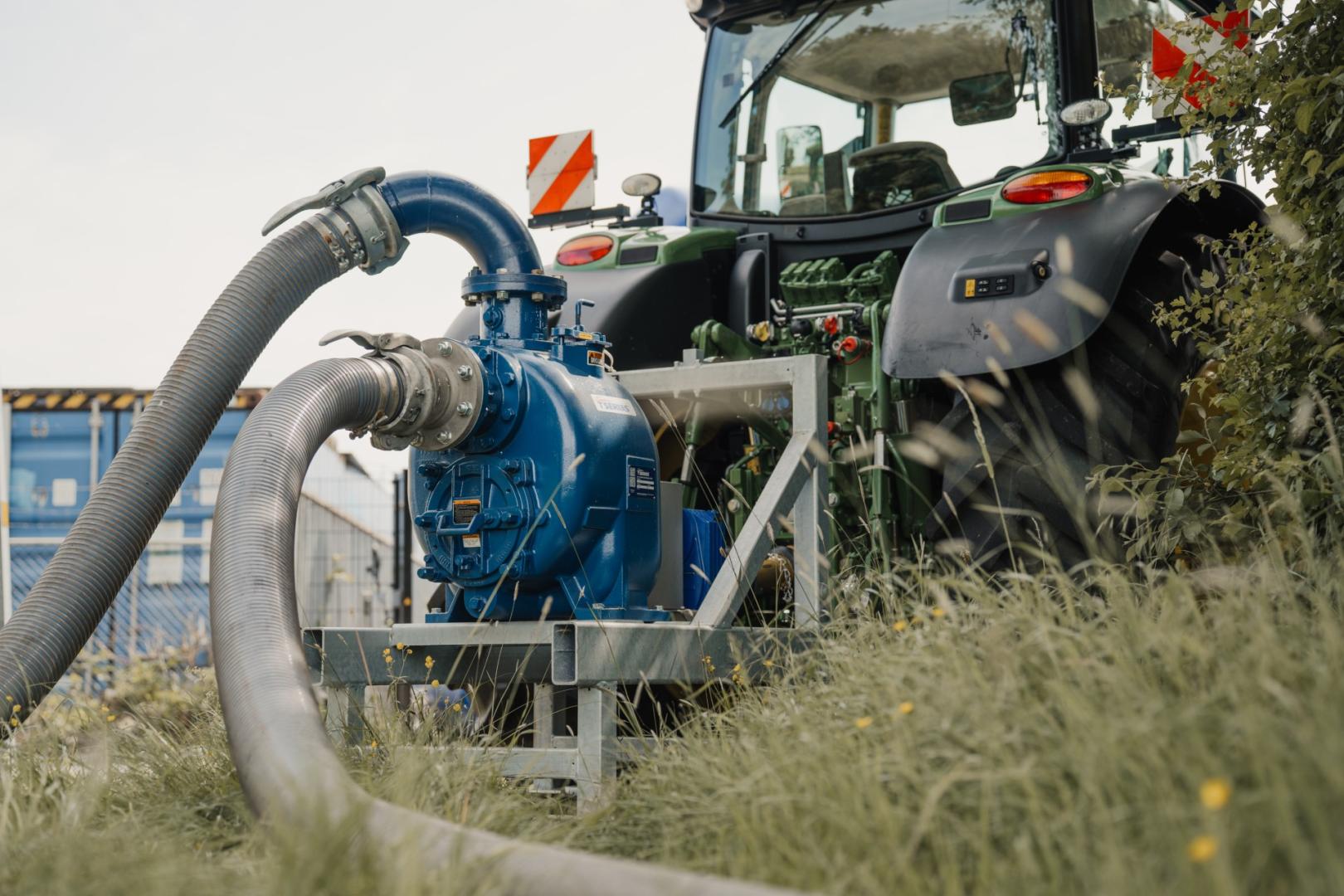

The Gorman-Rupp PTO Tractor Pump is a 6" centrifugal pump, wet self-priming, designed for mounting behind a tractor. The maximum flow rate is 320 m³ per hour, and the maximum head is 34 mWk. This pump set is mounted on a frame and equipped with a Walterscheid W2400-25 PTO drive shaft.
T6-PTO-Tractor driven pump
T6-PTO-Tractor driven pump
Details
| Chassis met onderstel voor tractormontage | met onderstel |
| Canopy | Nee |
| Priming system | Wet self-priming |
| Drive system Door externe (tractor) PTO as | Diesel |
| Max. Flow [m3/h] | 320 |
| Max. Head [mWc] | 34 |
| Max solid handling [mm] | 76 |
| Suitable pump fluid | Waste water & Clean Water & Sewage |
| Type of connection | Perrot (Mannelijk) |
| Connection size (suction) | 6 inch |
| Type of connection | Perrot (Mannelijk) |
| Connection size (discharge) | 6 inch |
| Height [cm] | 175 |
| Length [cm] | 196 |
| Width [cm] | 112 |
| Empty Weight [kg] | 725 |
